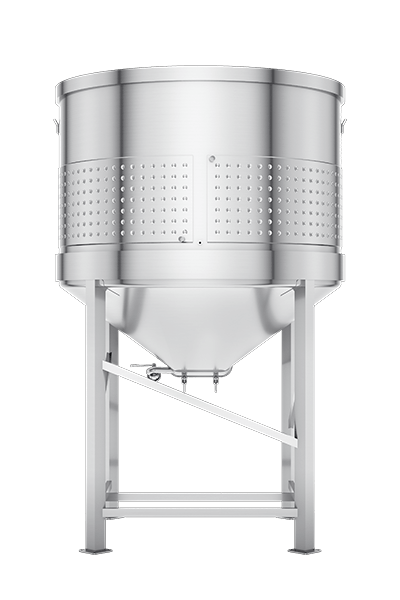

OT Conical Fermenter
Code: K
OT Conical Fermenter
Features
OT Conical Fermenter
Features
| Product Name: | OT Conical Fermenter |
| Product Code: | K |
| Inner Surface: | 2B |
| Outer Surface: | Oil brushed |
| Inner Weld Seam Treatment: | Olavin Surpro Finish (Ra ≤ 0.6μm / 24μin) |
| Outer Weld Seam Treatment: | Retain weld bead height, pickled and passivated |
| Material: | ☑ All SS304 [Standard] ☑ Wetted parts SS316, others SS304 [Optional] |
| Jacket: | ☑ Olavin Dypple Jacket ☑ Olavin Channel Jacket |
| Stackable: | No |
| Forkliftable: | No |
| Transportable: | No |
| Used for: | ☑ Fermentation |
| Connection: | ☑ Tri-clamp ☑ BSM ☑ DIN |
OT Conical Fermenter
Capacities and Dimensions
OT Conical Fermenter
Capacities and Dimensions
| Volume Tonne | Di mm | H1 mm | H2 mm | H mm |
|---|---|---|---|---|
| 2 | 1500 | 1219 | 1050 | 2950 |
| 5 | 2160 | 1500 | 1050 | 3400 |
| 10 | 2650 | 2000 | 1050 | 4100 |
| 15 | 2700 | 3000 | 1050 | 5100 |
| 20 | 3100 | 3000 | 1050 | 5300 |
* Customization is available.
| Volume Tonne | Di inch | H1 inch | H2 inch | H inch |
|---|---|---|---|---|
| 2 | 59 | 48 | 41 | 116 |
| 5 | 85 | 59 | 41 | 134 |
| 10 | 104 | 79 | 41 | 161 |
| 15 | 106 | 118 | 41 | 201 |
| 20 | 122 | 118 | 41 | 209 |
* Customization is available.
Di – Diameter
H1 – Shell Height
H2 – Bottom Net Height
H – Total Height
* Di – Diameter | * H1 – Shell Height
* H1 – Bottom Net Height | * H – Total Height
